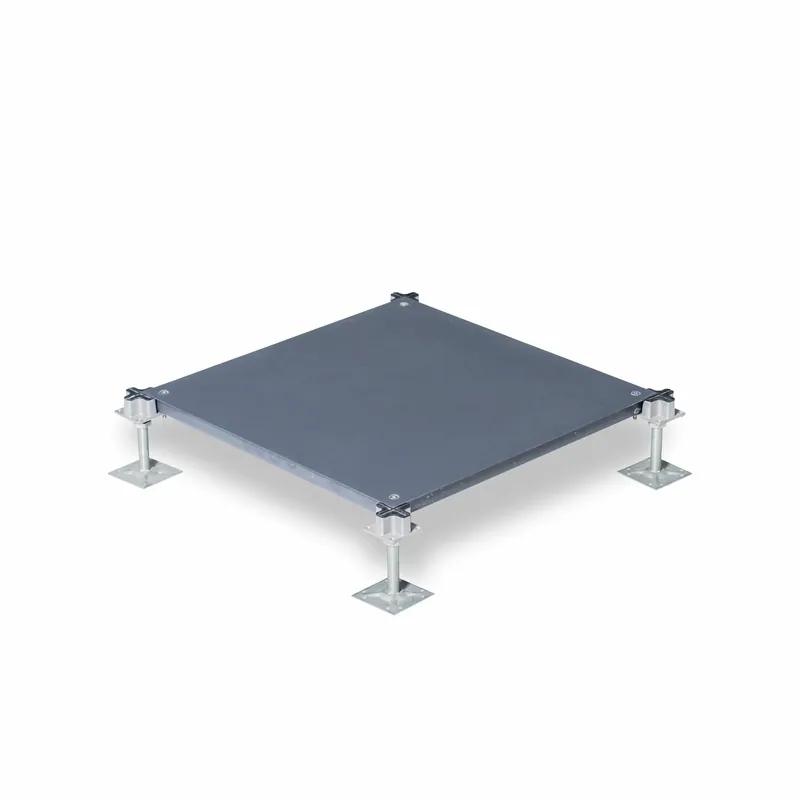

Steel Concrete Raised Floor OA500
Designed for data centers and server rooms with stable load and electrostatic control.
Steel Concrete Raised Floor OA500
Materials：steel, cement
Size：500*500*28mm
Installation：corner lock system
Finish：HPL/PVC
Features：commercial office building
Edging：Fold edging / Cut edging
The OA500 steel–concrete structure provides excellent load capacity, making it suitable for high-traffic commercial office environments.
The deep-drawn steel plate combined with cement infill ensures high rigidity, low vibration, and long-term dimensional stability.
The HPL/PVC conductive surface effectively dissipates static electricity, protecting office equipment and improving workspace safety.
The OA500 steel-concrete raised access floor is manufactured from premium steel plates, combining durability with high strength. These interlocking panels form a robust and secure surface capable of withstanding high foot traffic and equipment loads.
This design separates power lines from data lines, enhancing cabling flexibility, simplifying equipment maintenance, saving building space, and fully unlocking the functional potential of raised access flooring.
- Offering greater flexibility than traditional raised floors, it accommodates the retrofitting of cable tray systems.
- The OA500 steel raised access floor is a widely adopted flooring system in commercial buildings.
- This product is commonly found in commercial office buildings and other locations requiring cable management.
- Its simple installation and maintenance make it suitable for diverse applications.
| System Performance Criteria | ||||||
| Raised Floor | Static Loads | Rolling Loads | ||||
| Type | Size | Concentrated Load | Safety Factor (min.2.0) | Ultimated load | 10 Passes | 10,000 Passes |
| FS700 | 600x600x35mm 610x610x35mm | 318kg /700lbs | Pass | 636kg /1400lbs | 275kg 600lbs | 181kg 400lbs |
| FS800 | 600x600x35mm 610x610x35mm | 368kg/800lbs | Pass | 736kg/1600lbs | 318kg 700lbs | 275kg 600lbs |
| FS1000 | 600x600x35mm 610x610x35mm | 454kg/1000lbs | Pass | 909kg/2000lbs | 368kg 800lbs | 318kg 700lbs |
| FS1250 | 600x600x35mm 610x610x35mm | 568kg/1250lbs | Pass | 1136kg/2500lbs | 454kg 1000lbs | 368kg 800lbs |
| FS1500 | 600x600x35mm 610x610x35mm | 681kg/1250lbs | Pass | 1363kg/3000lbs | 568kg 1250lbs | 454g 1000lbs |
| FS2000 | 600x600x35mm 610x610x35mm | 909kg/1250lbs | Pass | 1818kg/4000lbs | 681kg 1500lbs | 568kg 1250lbs |
| FS2500 | 600x600x35mm 610x610x35mm | 1136kg/1250lbs | Pass | 2272kg/5000lbs | 909kg 2000lbs | 681kg 1500lbs |
| FS3000 | 600x600x35mm 610x610x35mm | 1363kg/1250lbs | Pass | 2726kg/6000lbs | 1136kg 2500lbs | 909kg 2000lbs |
- Design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. Design load is determined by taking the lesser value of ultimate load divided by two or the point at which permanent damage begins to occur (yield point).
- Safety factor is the multiple of Design load to the Ultimate Load. International standards and bonaway recommend’ a minium of 2.
1. Manufactured from premium steel plate, offering high mechanical strength and load-bearing capacity;
2. Interlocking panels form a robust and secure surface capable of withstanding high foot traffic and equipment loads;
3. Features highly effective fire-resistant and anti-static properties;
4. High-precision dimensional control ensures excellent interchangeability, simplifying installation and maintenance;
5. Generous underfloor space facilitates the installation and maintenance of electrical/data cables and various conduits.
Applications
Widely used in office buildings, data centers, power dispatch centers, telephone exchange control rooms, broadcast editing control rooms, and other specialized equipment rooms.
