Encapsulated Calcium Sulphate Raised Access Floor
Designed for data centers and server rooms with stable load and electrostatic control.
Encapsulated Calcium Sulphate Raised Access Floor
Materials：Steel, Calcium Sulphate
Size：500x500x20mm/26mm、600x600x26mm/28mm/30mm
Installation：Corner Lock Installation 、 Gravity Lay Installation
Finish：HPL/PVC
Purpose：Safe and aesthetically pleasing
Features：Office, Data Center
Edging：Fold edging / Cut edging

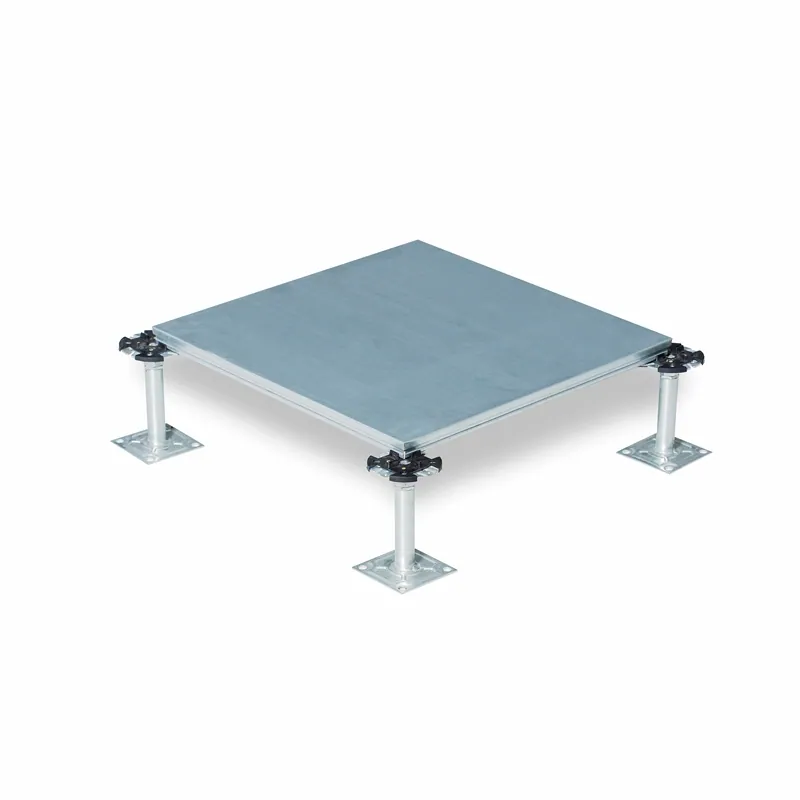

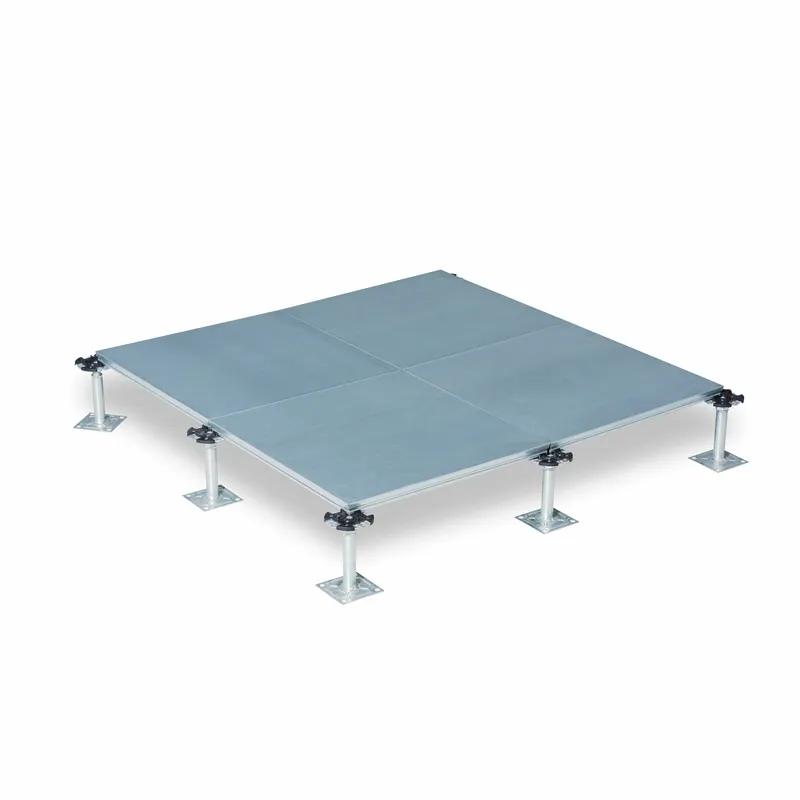

The encased calcium sulfate raised access floor is constructed using high-density calcium sulfate panels, with the outer layer formed by galvanized steel sheet cladding.
Encapsulated calcium sulfate raised access flooring is renowned for its exceptional fire resistance and sound insulation properties, making it an ideal choice for commercial spaces requiring both safety and noise reduction. Its modular design offers flexible configuration and customization options, ensuring precise alignment with architectural layouts and design requirements.
Encapsulated calcium sulfate raised access flooring offers exceptional durability, capable of withstanding heavy loads and high foot traffic, making it an ideal choice for commercial office buildings with high traffic volumes.
| System Performance Criteria | ||||||
| System Type | Static Loads | Rolling Loads | ||||
| Panel | Concentrated Load | Safety Factor (min.2.0) | Ultimated load | Uniform Load | 10 Passes | 10,000 Passes |
| ECS800 | 368kg/800lbs | Pass | 736kg/1600lbs | 1650kg/m2 | 318kg 700lbs | 275kg 600lbs |
| PEC1000 | 454kg/1000lbs | Pass | 909kg/2000lbs | 2300kg/m2 | 368kg 800lbs | 318kg 700lbs |
- Design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. Design load is determined by taking the lesser value of ultimate load divided by two or the point at which permanent damage begins to occur (yield point).
- Safety factor is the multiple of Design load to the Ultimate Load. International standards and bonaway recommend’ a minium of 2.
1. High stability and excellent fire resistance;
2. High load-bearing capacity;
3. High dimensional accuracy, superior interchangeability, easy installation, and convenient maintenance;
4. Spacious underfloor space facilitates installation and maintenance of electrical/data cables and various pipelines.
Applications
Encapsulated calcium sulfate raised access flooring offers exceptional durability, capable of withstanding heavy loads and high foot traffic, making it an ideal choice for commercial office buildings with high traffic volumes.
