Ceramic Anti-Static Steel Raised Floor
Designed for data centers and server rooms with stable load and electrostatic control.
Ceramic Anti-Static Steel Raised Floor
Materials：steel、cement
Size：602×602×40mm
Installation：stringer system
Finish：Ceramic
Purpose：Eliminate static electricity to protect core equipment
Features：Computer Center, Communication Facilities, Dedicated Equipment Room
Edging：Fold edging / Cut edging

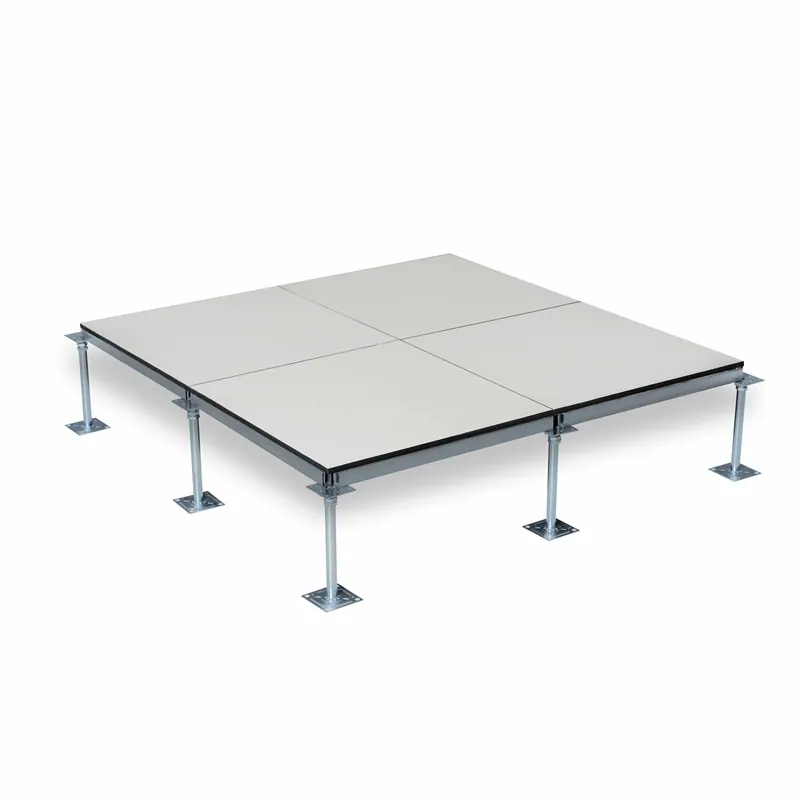

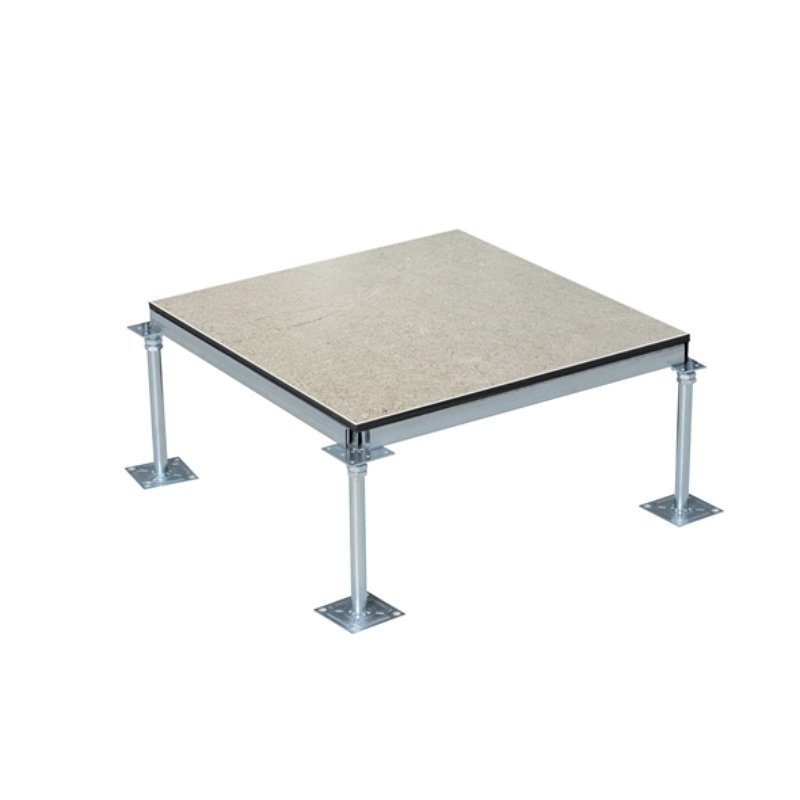

The anti-static ceramic-faced raised access floor structure consists of a steel panel surface coated with ceramic to form conductive pathways for static dissipation. It offers excellent wear resistance and durability.
Anti-static ceramic-faced raised access flooring is a flooring system specifically designed for data centers and other sensitive electronic environments to provide electrostatic discharge (ESD) protection.
Beyond its anti-static functionality, the ceramic finish offers an aesthetically pleasing appearance that can be customized to match data center design styles. The raised floor facilitates cable management and provides ample space for airflow, aiding in regulating the temperature and humidity conditions within the data center.
Ceramic-faced anti-static raised access flooring is the ideal choice for data centers and sensitive electronic environments.
| System Performance Criteria | ||||||
| System Type | Static Loads | Rolling Loads | ||||
| Panel | Panel Size | Concentrated Load | Safety Factor (min.2.0) | Ultimated load | 10 Passes | 10,000 Passes |
| FS800 | 602x602x40mm | 368kg/800lbs | Pass | 736kg/1600lbs | 318kg 700lbs | 275kg 600lbs |
| FS1500 | 602x602x40mm | 454kg/1000lbs | Pass | 909kg/2000lbs | 368kg 800lbs | 318kg 700lbs |
- Design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. Design load is determined by taking the lesser value of ultimate load divided by two or the point at which permanent damage begins to occur (yield point).
- Safety factor is the multiple of Design load to the Ultimate Load. International standards and bonaway recommend’ a minium of 2.
1. All-steel construction with high mechanical strength and load-bearing capacity;
2. Electrostatic powder coating on base surface provides a matte finish, wear resistance, corrosion protection, and excellent durability;
3. High-efficiency fireproofing and anti-static properties;
4. High dimensional accuracy, excellent interchangeability, simple installation, and easy maintenance.
5. Generous underfloor space facilitates installation and maintenance of power/data cables and various pipelines
Applications
Widely used in computer centers, communication hubs, data centers, power control dispatch centers, microwave communication stations, mobile communication facilities, program-controlled telephone exchanges, broadcast editing control rooms, and other specialized equipment rooms. Also suitable for production workshops of computers, communication, and electronic equipment (e.g., integrated circuits), as well as static-sensitive environments in military, petrochemical, and other flammable/explosive facilities.
