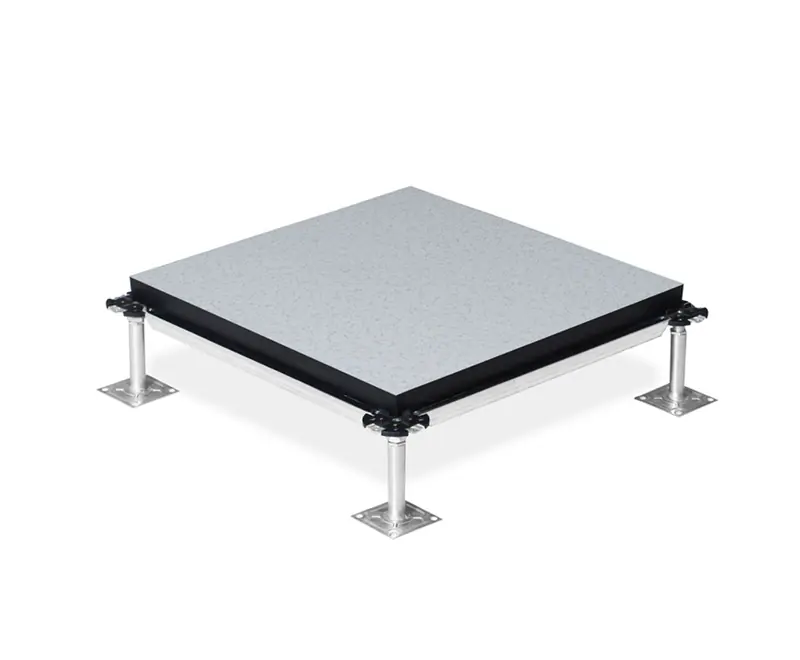

Anti-Static Calcium Sulphate Raised Floor
Designed for data centers and server rooms with stable load and electrostatic control.
Anti-Static Calcium Sulphate Raised Floor
Standard Size：600 × 600 × 30 / 34 mm
Panel Structure：High-density calcium sulphate core, steel base
Surface Finish： HPL anti-static laminate / PVC / Ceramic (optional)

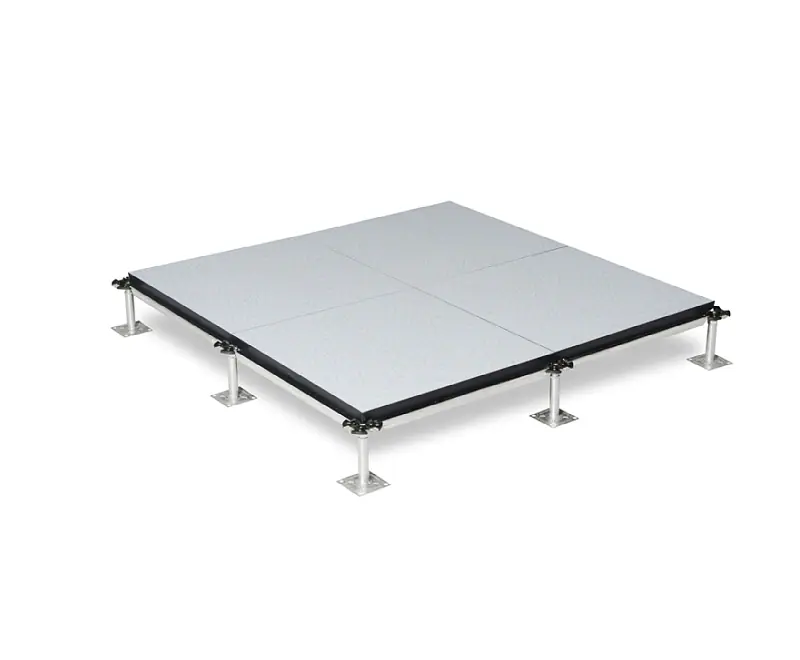

Installation System：Stringer system or bare pedestal system
Typical Applications：Data centers, server rooms, clean rooms
Load Performance：Stable load capacity and long-term dimensional stability
Engineered for technical environments requiring fire resistance, dimensional stability, and electrostatic control.
Anti-static calcium sulfate raised access flooring is constructed using high-density calcium sulfate panels, offering exceptional stability and fire resistance. The surface features high-pressure laminate (HPL), PVC, or Ceramic finishes, with a galvanized steel base plate and black PVC edge sealing strips around all four sides.
Anti-static calcium sulfate raised access flooring prevents static electricity buildup to safeguard equipment safety. It is suitable for precision electronic equipment environments such as data centers, server rooms, and modern office spaces.
| System Performance Criteria | ||||||
| System Type | Static Loads | Rolling Loads | ||||
| Panel | Panel Size | Concentrated Load | Safety Factor (min.2.0) | Ultimated load | 10 Passes | 10,000 Passes |
| PEC1000 | 600x600x30mm | 454kg/1000lbs | Pass | 909kg/2000lbs | 368kg/800lbs | 318kg/700lbs |
| PEC1250 | 600x600x34mm | 568kg/1250lbs | Pass | 1136kg/2500lbs | 454kg/1000lbs | 368kg/800lbs |
- Design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. Design load is determined by taking the lesser value of ultimate load divided by two or the point at which permanent damage begins to occur (yield point).
- Safety factor is the multiple of Design load to the Ultimate Load. International standards and bonaway recommend’ a minium of 2.
1. All-steel construction with high mechanical strength and load-bearing capacity;
2. Electrostatic powder coating on base surface provides a matte finish, wear resistance, corrosion protection, and excellent durability;
3. High-efficiency fireproofing and anti-static properties;
4. High dimensional accuracy, excellent interchangeability, simple installation, and easy maintenance.
5. Generous underfloor space facilitates installation and maintenance of power/data cables and various pipelines
Applications
Widely used in computer centers, communication hubs, data centers, power control dispatch centers, microwave communication stations, mobile communication facilities, program-controlled telephone exchanges, broadcast editing control rooms, and other specialized equipment rooms. Also suitable for production workshops of computers, communication, and electronic equipment (e.g., integrated circuits), as well as static-sensitive environments in military, petrochemical, and other flammable/explosive facilities.
