Aluminum Alloy Anti-Static Raised Access Floor

Designed for data centers and server rooms with stable load and electrostatic control.

Aluminum Alloy Anti-Static Raised Access Floor

Materials：aluminum

Size：600×600×55mm、600×600×50mm

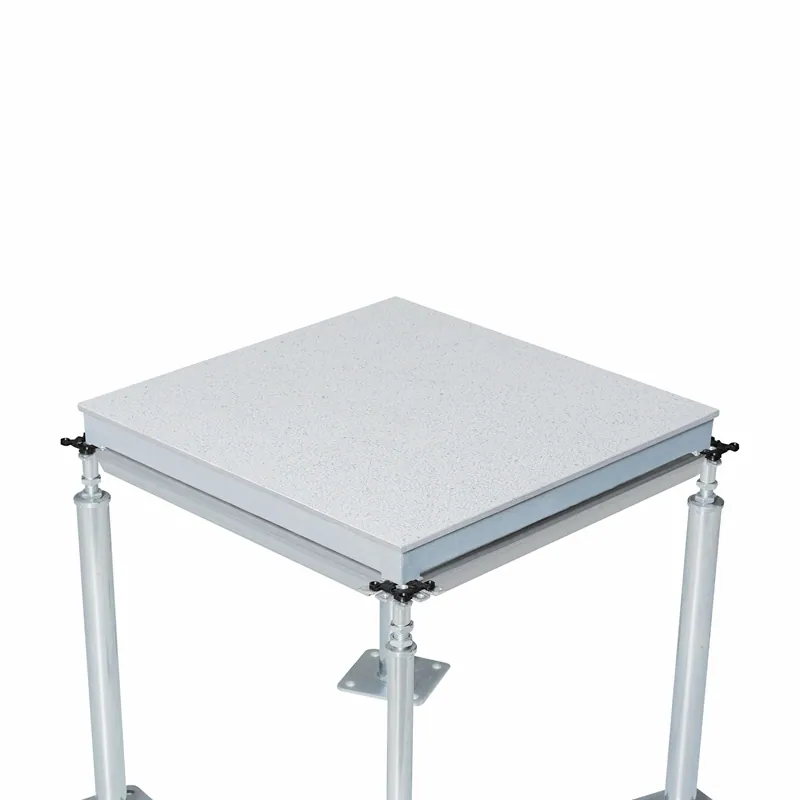

Installation：Four-corner support type

Finish：HPL/PVC

Purpose：Regulate airflow and maintain environmental stability

Features：High-grade cleanroom, dust-free chamber, microelectronic chip

Edging：Fold edging / Cut edging

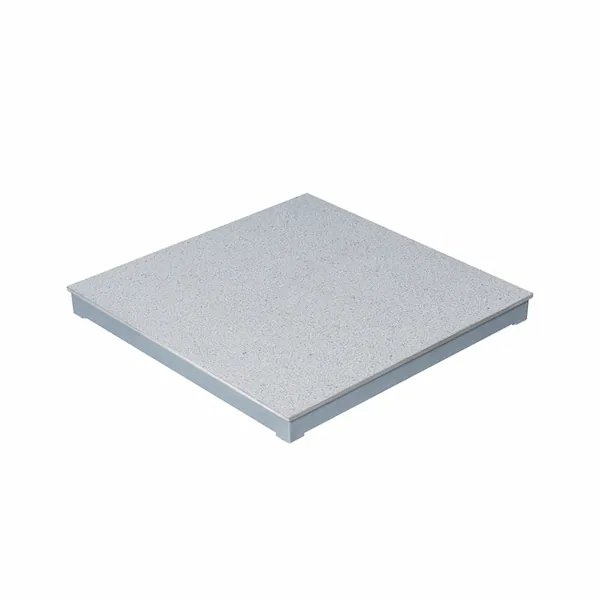

Aluminum Raised Access Floor is made of high strength and pure cast aluminum. The die-cast method ensures a high level of accuracy and uniformity in the panels, resulting in a smooth and stable surface.

Aluminum die-cast solid raised access flooring is manufactured from high-strength pure cast aluminum, combining the precision and strength of die-casting with the durability inherent to aluminum. The die-casting process ensures the panels possess high accuracy and uniformity, forming a seamless, stable surface.
With its non-porous nature and easy-to-clean advantages, aluminum die-cast solid raised access flooring is commonly used in environments requiring strict particle contamination control, such as cleanrooms. This flooring not only accommodates complex electromechanical requirements but also helps industries like pharmaceuticals, biotechnology, and semiconductor manufacturing maintain stringent cleanliness standards.

Project Detail	Finish	System Resistance	Material	Concentrated Load	Ultimated Load	Uniform Load	Special Treatment
HLS300	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	300kgf/6.45cm2 Deflection<=2.0mm	600kgf/6.45cm2	600kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS500	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	500kgf/6.45cm2 Deflection<=2.0mm	1000kgf/6.45cm2	1000kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS700	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	700kgf/6.45cm2 Deflection<=2.0mm	1400kgf/6.45cm2	1400kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS1000	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	1000kgf/6.45cm2 Deflection<=2.0mm	2000kgf/6.45cm2	2000kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS1200	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	1200kgf/6.45cm2 Deflection<=2.0mm	2400kgf/6.45cm2	2200kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS1500	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	1500kgf/6.45cm2 Deflection<=2.0mm	3000kgf/6.45cm2	3000kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS2000	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	2000kgf/6.45cm2 Deflection<=2.0mm	4000kgf/6.45cm2	4000kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS2500	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	2500kgf/6.45cm2 Deflection<=2.0mm	5000kgf/6.45cm2	5000kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating
HLS3000	HPL/PVC	Conductive 1O⁴-1O⁶Ω or Static Dissipative 1O⁶-1O⁹Ω	Die-cast aluminum	3000kgf/6.45cm2 Deflection<=2.0mm	6000kgf/6.45cm2	6000kgf/m2 Deflection<=1.0mm	Epoxy coating or Ni-Cr plating

Raised Access Floor design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. The design load is determined by taking the lesser value of the ultimate load divided by two or the point at which permanent damage occurs (yield point).
The Raised Access Floor safety factor is the multiple of Design load to the Ultimate Load. International standards and bonaway recommend’ a minium of 2.

Features

1. Manufactured from high-strength pure cast aluminum;
2. Electrostatic powder coating on base surface provides a matte finish, wear resistance, corrosion protection, and excellent durability;
3. High-efficiency fireproofing and anti-static properties;
4. High dimensional accuracy, excellent interchangeability, simple installation, and easy maintenance.
5. Generous underfloor space facilitates installation and maintenance of power/data cables and various pipelines

Application Areas
It is mainly used in high grade clean workshop, dust-free room, semiconductor, microelectronics chip, communication equipment, biochemical factory and other clean environment, dust proof, anti-static, pipeline laying centralized all kinds of data center room with down air supply device and other places.
